The Austin Slot Car Club Track is a custom built, three lane wood track with an average lane length of 54 feet (16.46 meters).  Lane spacing is constant at 4.5 inches (11 cm) so that 1:32 and 1:24 scale cars can be raced. The track is tastefully landscaped, however great care has been taken to ensure that there are no sight-line barriers to impede racers’ vision.

Lanes are powered by a Pyramid PS26KX adjustable power supply that delivers between 6 and 15 volts DC at up to 22 amps.  Timing is handled by a Trackmate timing package utilizing an overhead light bridge and Trackmate software for general use and Race Coordinator race management software for club-sanctioned races.

Quick Reference Summary

Average Lane Length:	54 ft (16.46 m)
Blue Lane Length:	54 ft (16.46 m)
Green Lane Length:	54 ft (16.46 m)
Yellow Lane Length:	54 ft (16.46 m)
Driver Station Connector:	Female XLR (B:P1, W:P2, R:P3)
Power Supply:	Pyramid PS26KX
Voltage:	6 to 15 VDC at 22 amps
Timing System:	Trackmate w/ LED Light Bridge

.

Driver stations are outfitted with female XLR connectors wired with Black (Track) on pin 1, White (Positive) on pin 2, and Red (Brakes) on pin 3 – which indicates a Positive Polarity wired track.

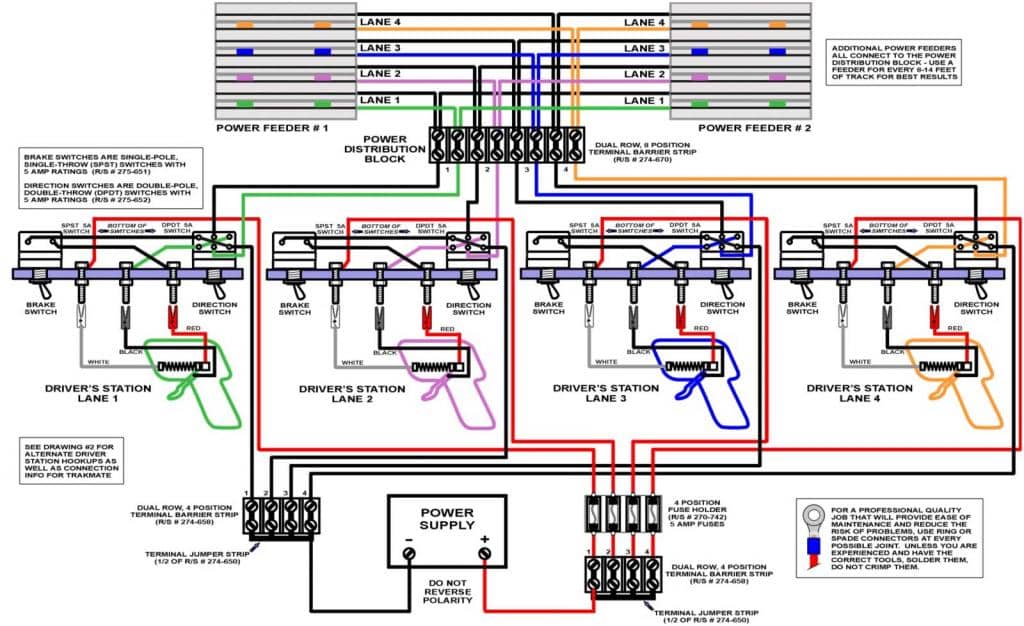

Here are the track and controller wiring diagrams:
