For Sale: Modular 1/24 Scale, 6-Lane Slot Car Track Project – Fundraiser for Austin Slot Car Club!

Level the Playing Field with Endless Layouts!

Have you ever wanted a large, high-quality 1/24 scale slot car track but wished you could change the layout to keep things fresh and ensure fair competition? This project is your chance to build exactly that!

I started this project with the goal of creating a modular track system. The idea was to host events where no one, not even the locals, would have prior experience on the specific layout used that day, creating a truly level playing field for all racers. This sale offers the core components and design files to bring that vision to life.

This is an ideal project for a slot car club looking for a versatile track, or an individual enthusiast wanting the ultimate customizable racing experience. It’s designed for those who understand the scale and space requirements for a track of this nature.

Crucially, 100% of the proceeds from this sale will be donated directly to the Austin Slot Car Club to support their activities.

What’s Included:

• Modular Track Sections (6-Lane, 1/24 Scale):
  • Cut from sturdy 3/4″ MDF.
  • Lane Spacing: 4.25 inches.
  • 2 x Medium Straights (Module 601)
  • 2 x Long Straights (Module 621)
  • 1 x Long S Left (Module 605)
  • 1 x Long S Right(Module 606)
  • 4 x Large Radius Turns (Module 611)
  • 8 x Short Radius Turns (Module 607)
  • Detailed module dimensions are shown in the accompanying photos.
• CNC Routing Path Files:
  • Digital files in .DXF format (compatible with many CNC software programs) for routing the slots on 10 different track module designs.
  • These allow for incredible layout variety and future expansion/replacement.
  • Files specify a standard slot depth (exact measurement not recalled but follows typical routed track standards).
  • Files provided at pickup.
• Alignment Jig & Drill Guides:
  • The physical jig used to accurately drill alignment dowel holes in the modules.
  • (Please Note: The CNC file for this specific jig was unfortunately lost, making this physical jig potentially the last of its kind! It works perfectly for replicating the alignment holes).
• Assembly Hardware: All necessary rubber isolation/spacing pieces, wooden alignment dowels, and Ikea-style fasteners for connecting the modules securely.
• Hauling Cart: A sturdy “Home Depot-style” cart (approx. 8ft long x 32 inches wide) for easily moving and storing the track modules (as seen in video/photos).

Project Status:

This is a project, not a completed track. The included modules have been precision cut based on the CNC designs. The next steps involve:

1. Using the CNC files (requires access to a CNC router) to cut additional MDF track sections.
2. Wiring the track sections for power (braid/tape, power taps – not included).
3. Painting and adding scenery (optional).
4. Adding a power supply, driver stations/controllers, and lap timing system (not included).

Investment & Value:

Significant time, effort, and resources (over $4,000) have been invested in this project, including professional CNC consultation and cutting during the trial-and-error development phase. You benefit from this R&D to get a well-designed modular system foundation.

Asking Price:

$1,200.00 (Remember, all proceeds go to the Austin Slot Car Club!)

Why Buy This Project?

• Build a unique, large-scale modular track.
• Create countless layouts for varied racing challenges.
• Perfect for clubs or individuals wanting ultimate flexibility.
• Includes valuable CNC design files (.DXF) for 10 module types.
• All proceeds directly benefit the Austin Slot Car Club.

Pickup & Logistics:

• Location: Austin, TX area (Current Date: April 30, 2025).
• Transport: Requires a trailer or coordination with a cargo/freight company for pickup due to size and presumed weight (total weight unknown). The hauling cart dimensions are approx. 8ft x 32 inches. Buyer responsible for all pickup and transport arrangements/costs.
• Sold “as-is”.

Interested?

Please reply directly to this thread if you are interested or have further questions.

Be sure to review all accompanying photos and video which show component details, module sizes, the cart, and the alignment jig.

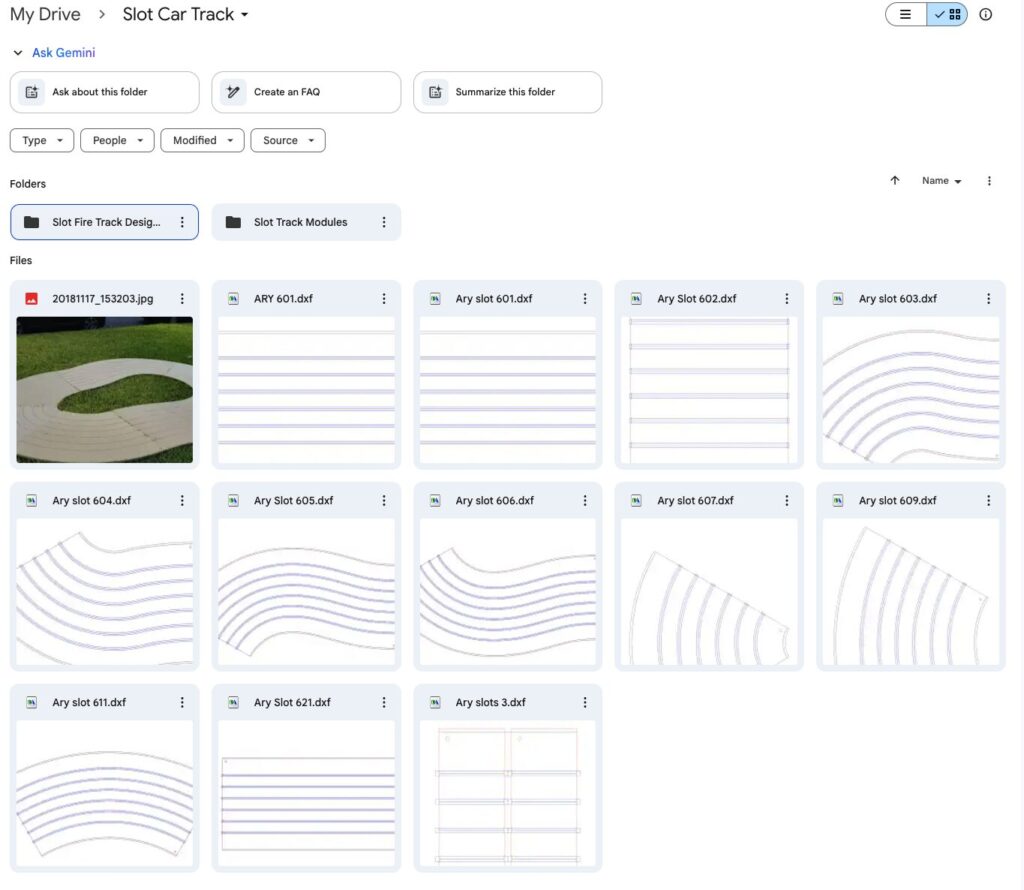

DXF files

Alignment check of the curved modules

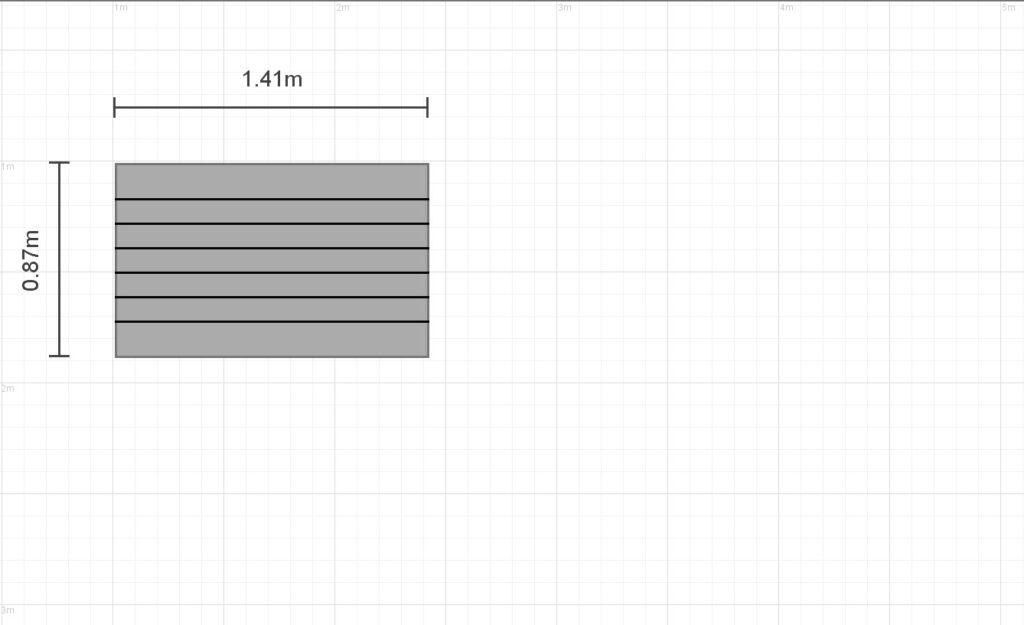

Module 601

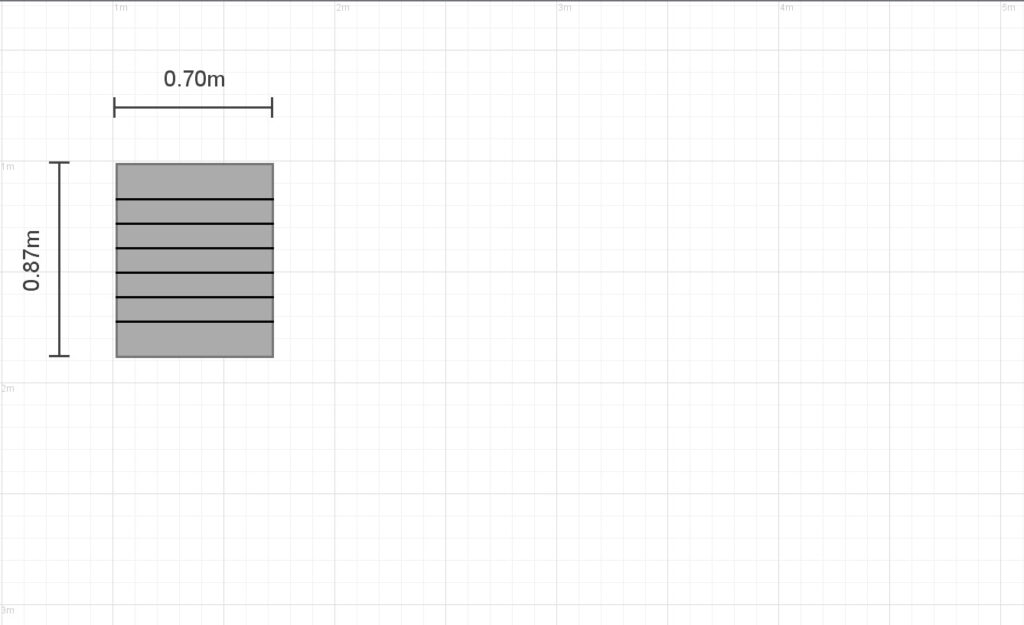

Module 602

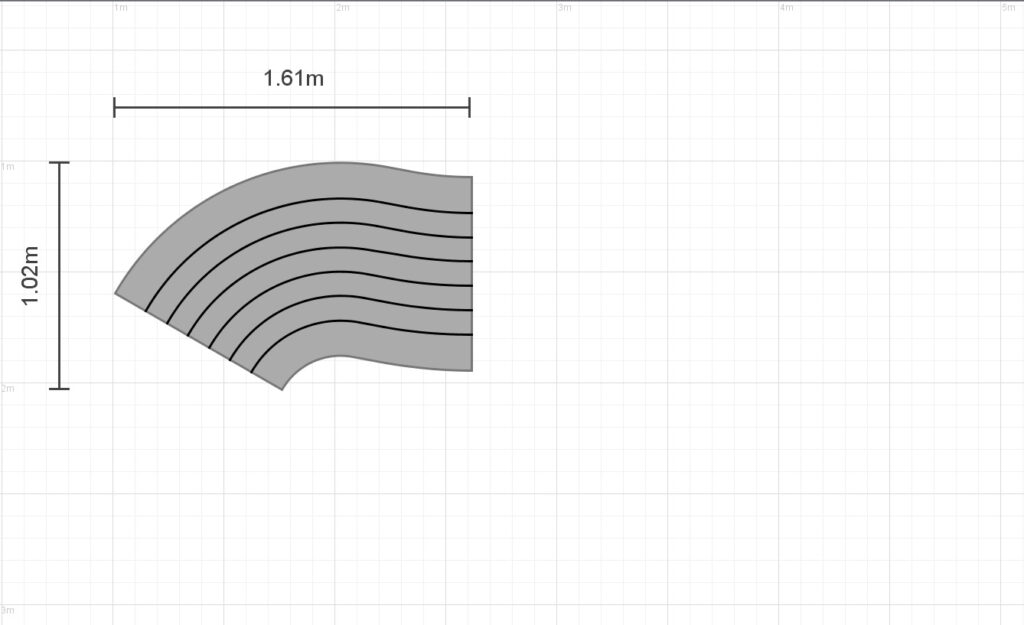

Module 603

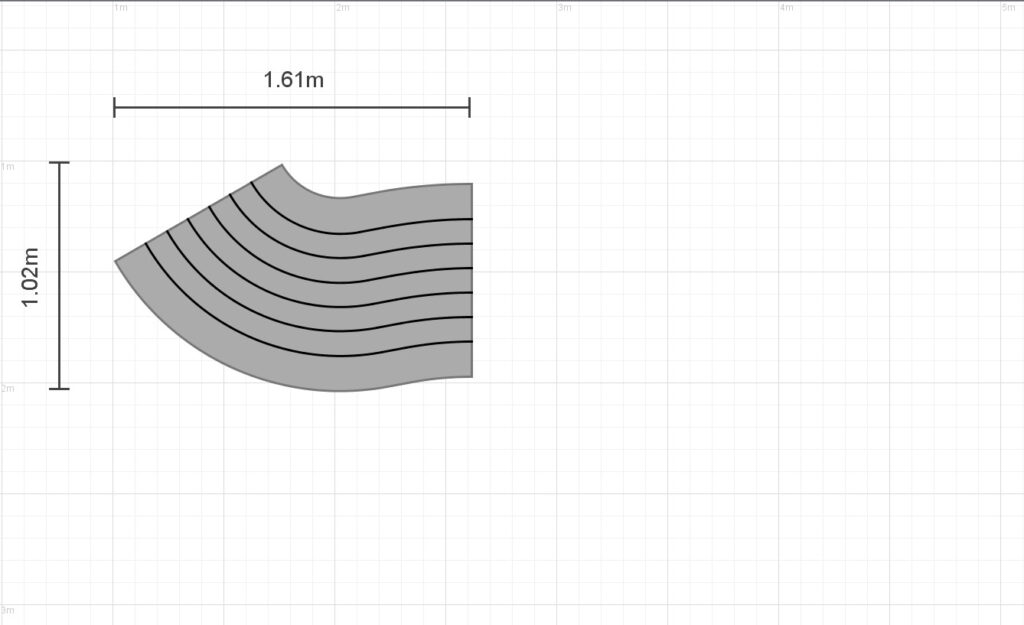

Module 604

Module605

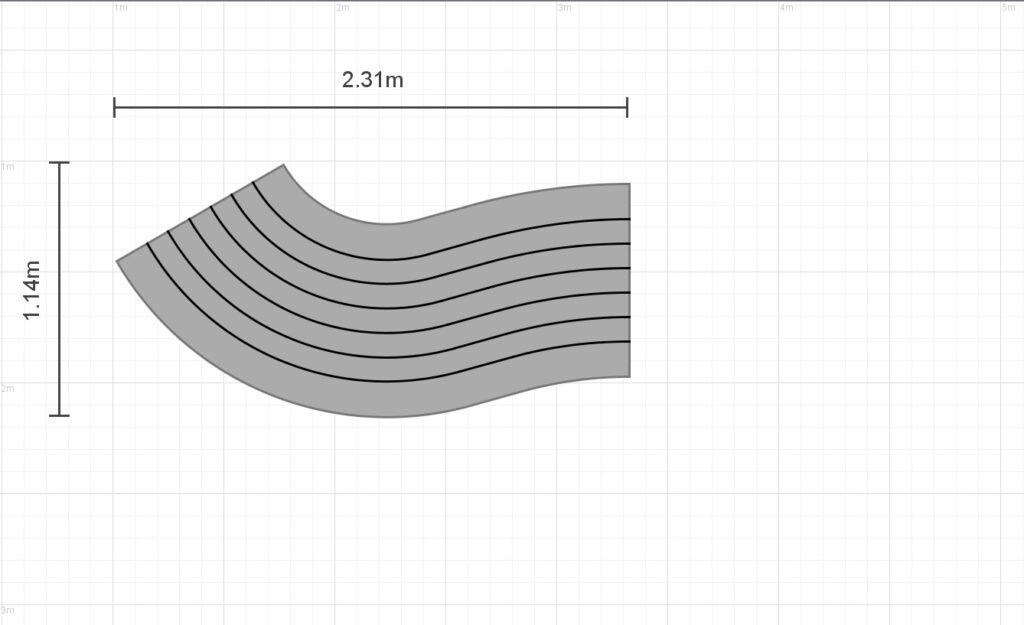

Module 606

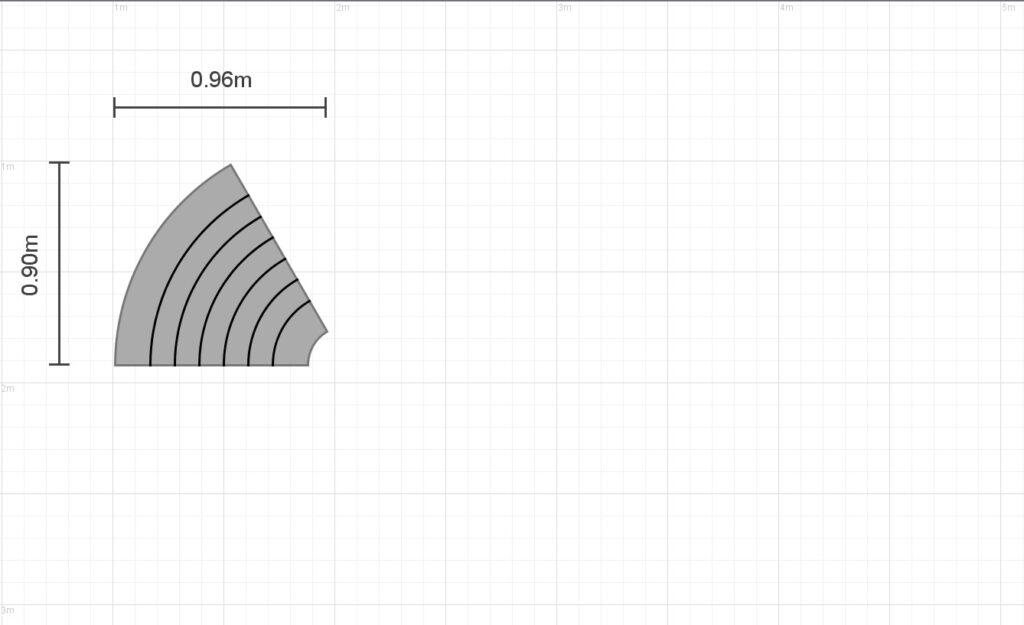

Module 607

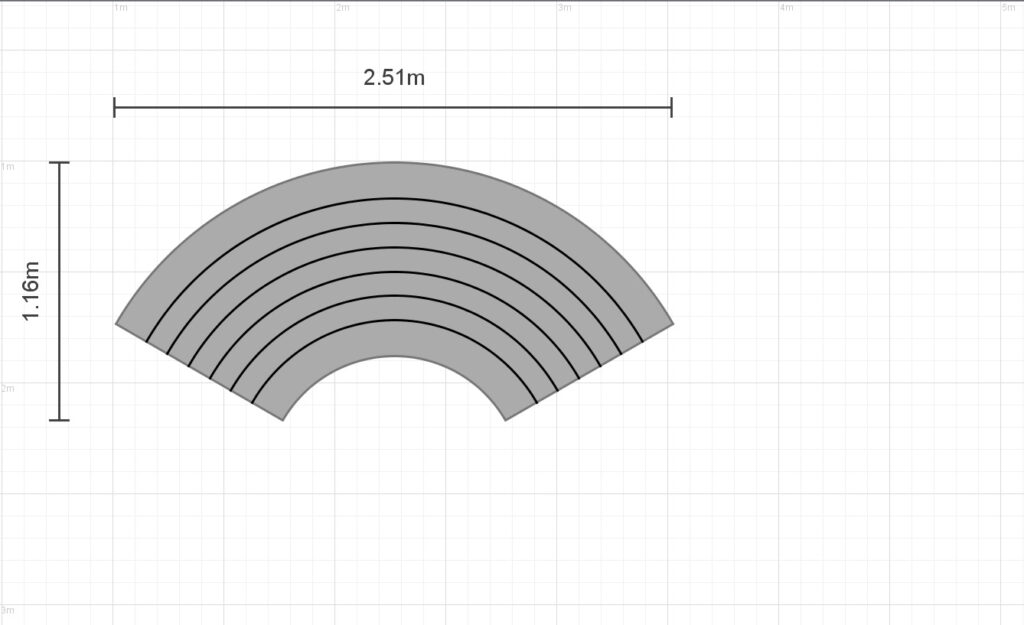

Module 609

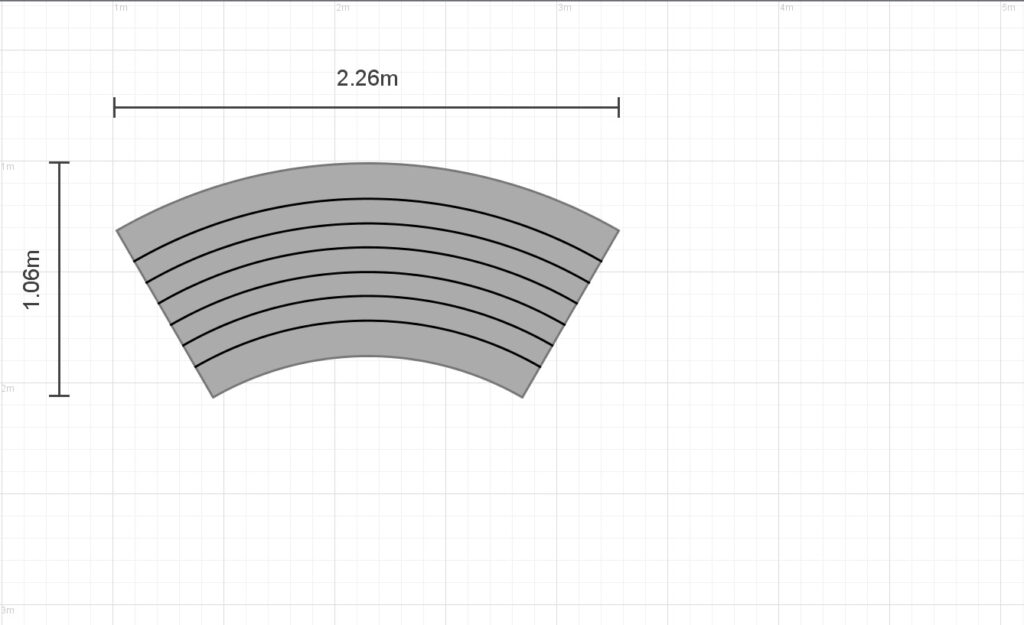

Module 611

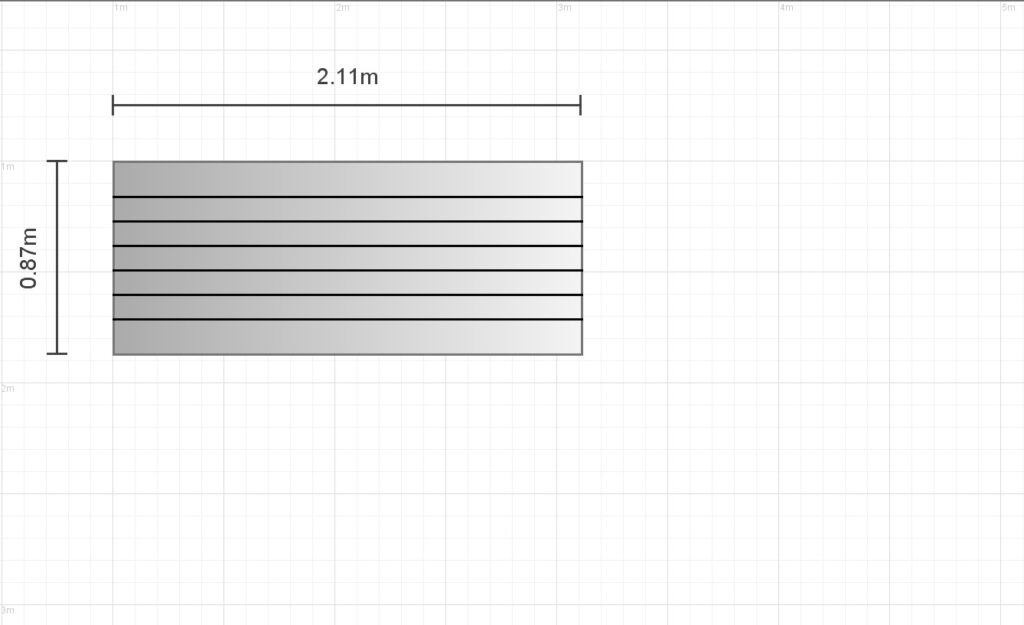

Module 621

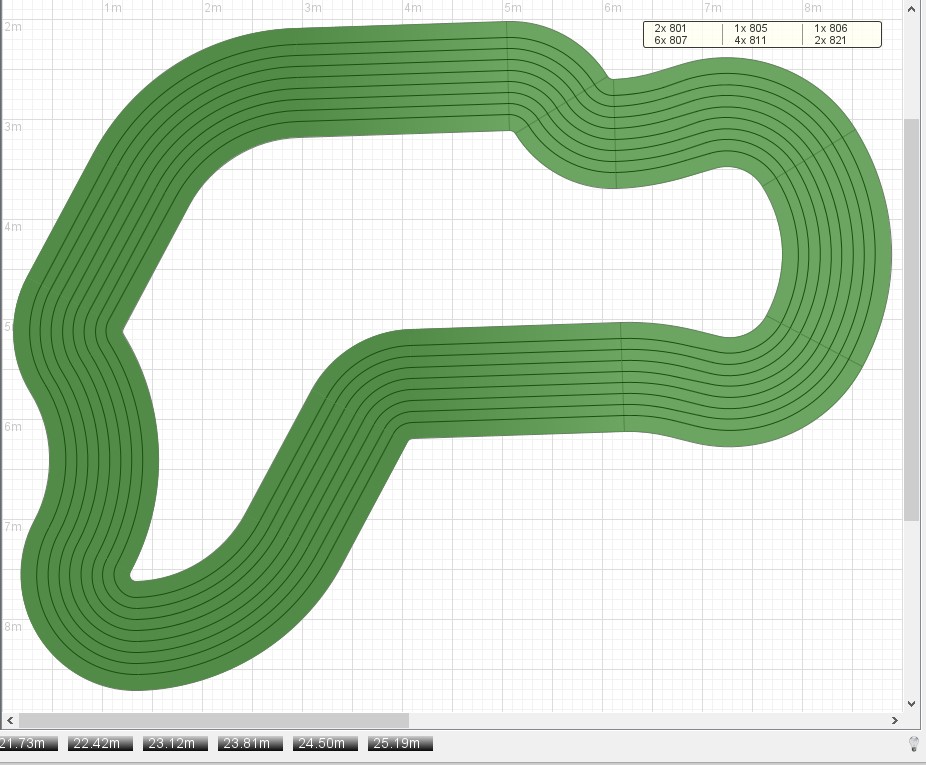

With the already cut track modules, you could build a course of approximately 72 feet (22 meters – disregard the 8 lane layout)
