Revoslot Toyota GT-One Spec race  – Road Track

• Manager – Brian H.
• Proposed calendar – H1
• Rules to be developed
• Manufacturer’s website: Revoslot Toyota GT1
• Example vendor websites:
  • electric Dreams
  • LEB Hobbies
  • 132slotcars

**Final Rules**

Models Allowed

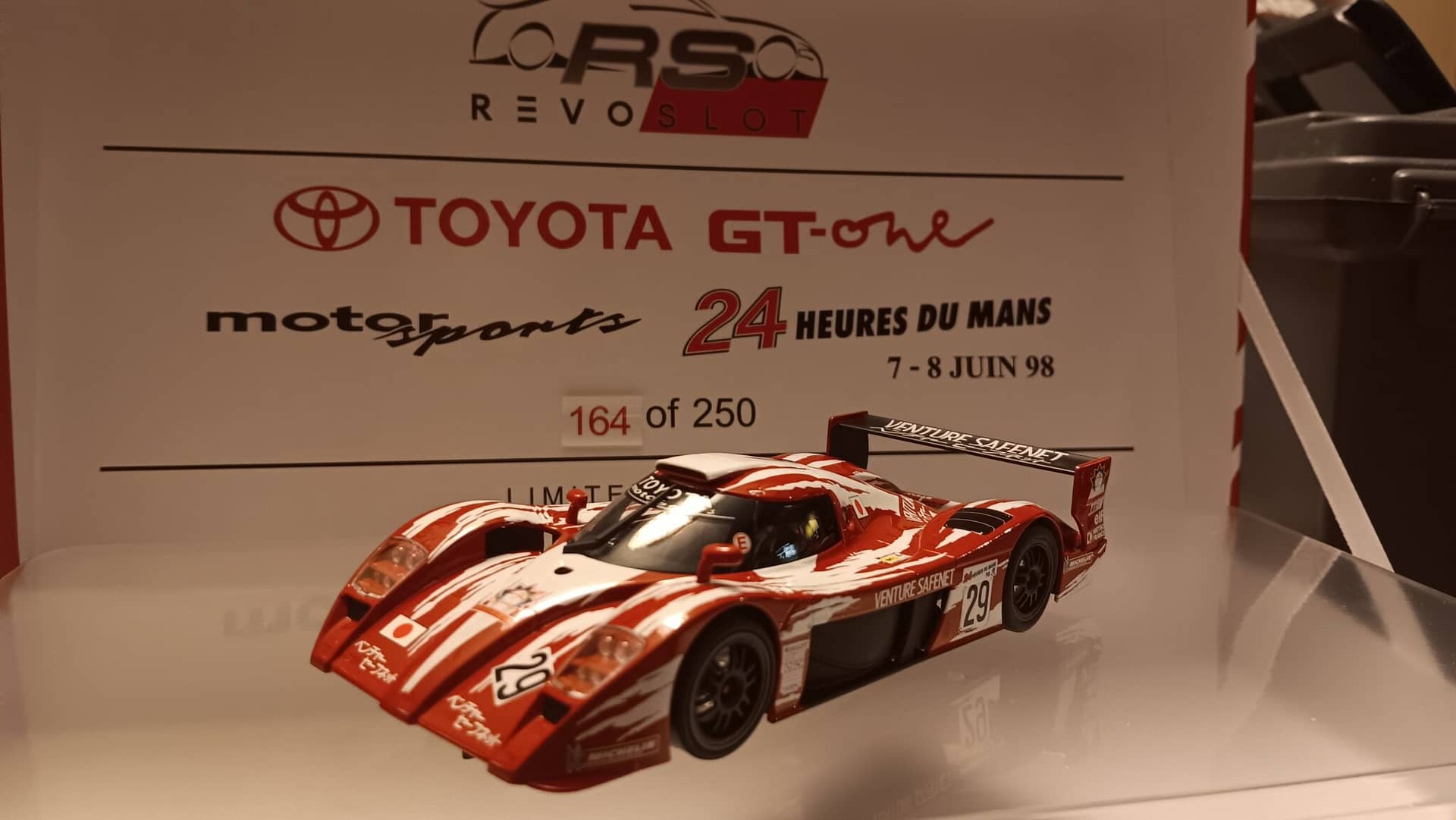

• RevoSlot Toyota GT-One
• Racers are strongly encourged to select a livery prior to the series.
• If practical and possible, no more than two of the same liveries will be allowed.

Body

•  No modifications to the body are allowed with the exception of the installation of a light kit such as the Ane Slot Lighting or Slot.it kits.
• Stock cockpit (RS-153) and stock windows (RS-152) are required. Parts may be secured to the body shell with an adhesive such as ShoeGoo, CA, Canopy glue, or other appropriate material for reinforcement.
• The body must start every heat with all major body parts intact. (Antennas, mirrors, wipers, tow hooks, and other small, protruding parts are not required.)
• If fitted with a light kit, at least one headlight and one tail light must be functional at the beginning of each heat.
• Rubber body bumpers are required.
  • 4.0mm – H 0.5mm BLUE Rubber covers for body post (RS234A)
  • 4.0mm – H 1.0mm BLACK Rubber covers for body post (RS234B) (Box-stock)
  • 4.0mm – H 1.5mm WHITE Rubber covers for body post (RS234C)
  • 4.0mm – H 2.0mm RED Rubber covers for body post (RS234D)
• Body screws must be either the stock screws, the brass replacement screws (RS-213B), or 1.5mm x 6mm button, cap, or pan head screw.
• Body screws may be taped over to prevent loss during the race. The tape must not control body or pod movement.
• White Body Kit Requirements (RS-150)
  • The exterior of the body must be painted with at least one coat of paint.
  • Numbers must be displayed on both sides and the top of the car.
  • Numbers must be at least 7mm tall.

Body Plate (RS-154)

• Modification of the body plate is prohibited.
• All body plate screws must be box-stock or the same size and material as box-stock and in place at the start of each heat. (This variance is granted due to some reports of issues with the quality of the stock screws.)
• Tape may be used to ensure body plate screws remain in place, but may not be placed in such a way as to influence the movement of the body plate in relation to the chassis plate.
• Modification of front axle holders is prohibited.
• Front bearings must be box-stock. (S-410)
• Traction magnets are prohibited.

Chassis Plate (RS-155)

• Modification of the chassis plate is prohibited.
• Chassis plate screws must be box-stock or the same size and material as box-stock and in place at the start of each heat. (This variance is granted due to some reports of issues with the quality of the stock screws.)
• Tape may be used to ensure chassis plate screws remain in place, but may not be placed in such a way as to influence the movement of the chassis plate in relation to the body plate.
• Chassis plate to body plate nuts are restricted to:
  • 1.5mm float (RS-208) (Box-stock)
  • 1.0mm “Zero Float” (RS-208A)
  • 2.0mm float (RS-208B)
  • 2.5mm float (RS-208C)
  • 3.0mm float (RS208D)
• Rear axle holders may not be modified in any way.
• Rear bearings must be box-stock. (S-410)
• All chassis plate screws and nuts must be in place at the start of every heat.
• Ballast is permitted. Material is open choice. Ballast must be secured inside the chassis and will not be visible.

Guide

• The guide is restricted to:
  • 7mm (RS-210)
  • 9mm (RS-210W) Note: 9mm guide is strongly recommended.
• Guide screw is restricted to RS-210S.
• Guide spring is optional. If installed the spring must be box-stock. (RS-210SP)
• Pick-up braid is open choice.

Motor

• Stock RevoSlot motor is required. (RS-211 21,000 RPM Motor)
• Modification of the motor is prohibited.
• Stock motor mount/holder is required. (RS-207)
• Motor mount/holder may not be modified.
• Lead wires must be the box-stock RevoSlot wires. (Note: these are included with each motor and presoldered in place) The wires may be secured to the chassis with an appropriate adhesive such as hot glue or other material to avoid contact with the front axle. Adhesive must not influence body or pod movement.

Gears

• Gear ratio is open choice.
• RevoSlot spur gear and pinions are required. (Note: Racers are cautioned to “mind the gap” related to gear sizes)
  • 8T brass pinion Ø 5.0mm (RS-231)
  • 10T brass pinion Ø 6.0mm (RS-233)
  • 12T brass pinion Ø 6.4m (RS-212) (Box-stock)
  • 24T – Ø 14mm Nylon with aluminum hub AW spur gear (RS-227)
  • 25T – Ø 14.5mm Nylon with aluminum hub AW spur gear (RS-228)
  • 26T – Ø 15.0mm Nylon with aluminum hub AW spur gear (RS-229)
  • 27T – Ø 15.5mm Nylon with aluminum hub AW spur gear (RS-230)
  • 33T – Ø 12.4mm Nylon with aluminum hub AW spur gear (S-419) (Box-stock)
  • 33T – Ø 12.4mm Ergal AW spur gear (S-419A)
• Modification of the spur gear and/or pinion is prohibited.
• Box-stock grub screws or equivalent are required.

Wheels

• Box-stock RevoSlot wheels are required. (RS-157 Front and RS-158 Rear)
• Box-stock wheel inserts are required and must be in place at the start of each heat. (RS-156)
• Modification of the wheels is prohibited. (Balancing the wheels with weight is permitted.)
• Box-stock grub screws or equivalent are required.

Axles

• Box-stock axles are required. (RS-209)
• Modification of the axles is prohibited.
• Axle spacers are open choice.

Tires

• Rear tire selection is limited to:
  • RevoSlot Standard Shore 30 (RS-202 W)
  • RevoSlot G25 tires (RS-202 WG)
  • RevoSlot Shore 22 tires (RS-202 WS)
• Front tire selection is limited to:
  • Box-stock low profile (RS-201M)
  • Hard lowered front tires (RS-201).
• Tires may be trued and have their edges rounded.
• Tires may be glued to the wheels.
• Traction compounds are prohibited.
• Coating the front tires with any material is prohibited.

Track Power

• The track power will be set at 12.5 volts. NOTE: Subject to raceability.

General

• If it is not mentioned it is not legal.
• These rules were written to create a fair event and not for racers to look for loopholes.
• Any deviation to these rules must be run by the series manager before any race.
